Pipelines don’t have to burst for it to become an operational issue. They can happen quietly:

  • Weeping flange
  • Hairline crack
  • Pinhole leak

Such leaks could lead to fatal pipe failures, causing significant water loss and high utility bills.

Water is in high demand in industrial plants, whether for brewing and soft drink manufacturing or chemical production. Any amount of water loss can severely affect production.

Understanding the root cause is essential to prevent recurrence. A good piping design can pinpoint the location of leakage before it happens.

This blog tells you,

  • How water loss affects industrial plants
  • Where does the leak start?
  • Designing and integrating water pipeline leak detection

Read ahead.

The hidden costs of water loss in industrial plants

The cost of water itself represents only a fraction of the total impact. The hidden costs can make the true cost of a water leak several times higher than a utility bill alone.

Here’s a detailed breakdown of the hidden costs:

Higher energy consumption

Water leaks draw extra fuel and power consumption. Pumps, compressors, and treatment systems must work longer and harder to maintain pressure. Energy used for heating and cooling is also wasted when systems run at low water levels.

Equipment damage

Persistent leaks can accelerate damage—corrosion, rust, and scaling—in pipelines, pumps, and valves, shortening asset life.

Compliance Issues

Plants are provided permits for water withdrawal from lakes, municipal suppliers, groundwater, or rivers. Leaks may cause plants to exceed their withdrawal limits, leading to monetary penalties, regulatory notices, and future restrictions in water usage.

Environmental Violations

Process water, cooling water, or chemically treated water leaks can contaminate soil, surface water or groundwater. This may trigger environmental investigations and increased regulatory oversight.

Where do leaks originate?

Heavy operating conditions in industrial plants can cause pipelines to weaken, resulting in gradual wear. Leaks develop from these weak points, causing sudden mechanical failures.

Some common causes of industrial pipe leakage include:

  • Loose joints, flanges, or valves
  • Chemical incompatibility with pipe materials
  • Damage from high impact and vibrations
  • Thermal expansion and contraction causing pipe stress
  • Water hammer from sudden pressure shock waves
  • Inadequate maintenance and delayed repairs
  • Ageing equipment and material degradation

Piping systems designed to withstand demanding industrial conditions can run continuously even when exposed to high operating pressure and temperature fluctuations.

Cost implications of water loss and energy consumption

Translating water loss into measurable costs can encourage manufacturers and engineers to understand the economic impact. This reduces such instances while also saving the environment.

Additionally, plants operating under Environmental, Social, and Governance (ESG) frameworks need to report environmental metrics through documentation in addition to their internal efforts for saving cost, water, and electricity.

Here’s how water pipeline leaks can be quantified in terms of financial losses and how these costs can be saved through timely detection:

Costs

Increasing operational costs

Leaks create additional expenditures and maintenance that end up affecting the efficiency of a plant’s operations. It can lead to:

  • Increased pump operating hours
  • Additional chemical consumption
  • Excessive pump cycling reducing equipment life

Determine cost of lost water

Water loss depends on the design and performance of a piping system. Leakages and inadequate infrastructure itself account for 23-26% water loss.

The cost of lost water includes more than the purchase price of raw water:

  • Water treatment (filtration, reverse osmosis, softening)
  • Waste water treatment and discharge fees
  • Raw water tariffs
  • Chemical dosing and conditioning

Savings

Estimate savings through leak detection

Design engineers use pipe stress analysis, leak detection and prediction models to identify potential water leaks.

The leaks detected through these analyses and models can significantly save on costs in this manner:

  • Extend equipment lifecycle
  • Reduced water consumption and wastage
  • Lower pumping cycle energy
  • Improved water pressure balance

Develop ROI assessment

Investing in leak detection and piping design software is more cost-effective than relying on reactive maintenance after the leaks appear. Manufacturers should evaluate the upfront investment against the potential savings from reduced water losses, energy consumption, and costs.

  • Cost of leakage detection systems (sensors, software, installation)
  • Operating costs of leakage detection systems (software license, maintenance)
  • Annual Savings (reduced water, energy, maintenance costs)

Designing water pipelines for leak detection

The primary function of water pipelines is to ensure adequate flow to all sections of an industrial plant and its equipment. However, leaks can develop unnoticed within the piping network and may remain undetected until a major water pipeline failure occurs.

Leaks can turn into losses, reduced equipment life, halted production, and penalties due to environmental violations.

The good news is this can be rectified during the piping design phase itself, instead of spilling over as post-fabrication issues. Engineers design pipelines not only to meet hydraulic requirements but also to reduce leak occurrence and enable effective leak detection.

Compliance with ASME B31 standards promotes strong design practices while ensuring pipeline integrity.

Piping system zoning

Water distribution across piping systems is divided into zones to monitor potential leaks under different operating conditions. These zones are isolated using valves, so that damaged sections can be closed off without affecting the entire system.

Material-Sensor Integration

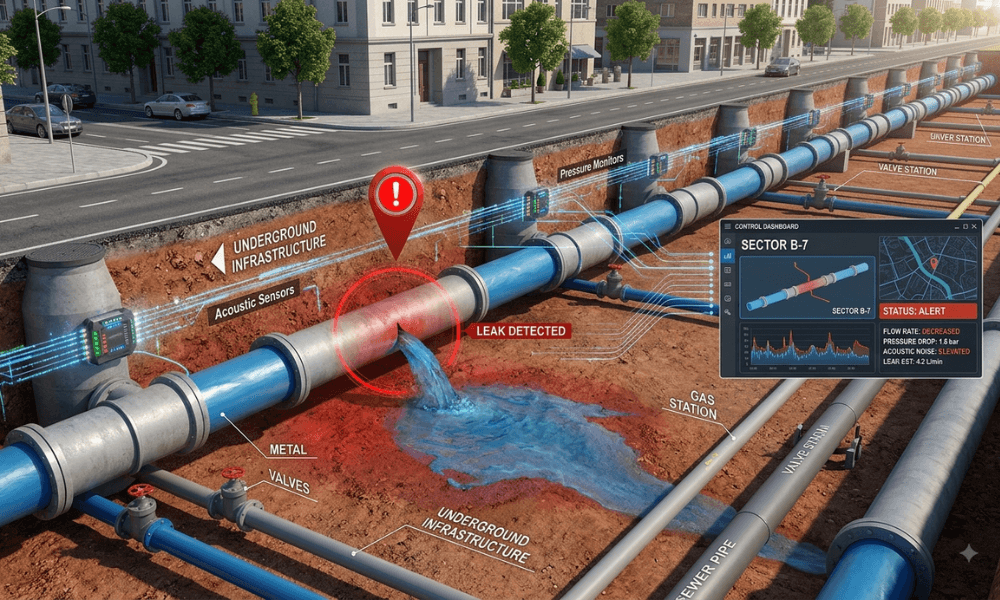

Pipe materials can help detect leak points when coordinated with sensors. However, each material behaves uniquely to sensors. Steel has excellent acoustic performance, while PVC pipes dampen noise. Sensors are strategically placed across the piping system during the design phase to capture anomalies in time.

Maintenance Planning

Asset condition monitoring ensures that ageing equipment is repaired or replaced before failure occurs. Monitoring and repairing minor drips can prevent pipe bursts and extend the service life of the piping systems. Thermal imaging and acoustic surveys are some of the methods used to monitor these leaks. During piping design, sensors are embedded along pipelines to track fluid flow and map leaks.

Pressure Management

Design engineers identify high-stress zones during stress analysis and modelling to minimise pressure fluctuations. Pipe sizing is adjusted and balanced for peak and minimum flow conditions. Simulation maps can help track these pressure zones, providing mechanical stress relief, reducing premature component loss and maintenance costs.

Enhance your plant’s production capability: From water leak detection to optimised piping design

Prevent production downtime caused by unattended water leakage by equipping your piping system in advance.

Whether addressing existing issues or developing a new design, our plant and piping engineering team can deliver robust, long-lasting piping solutions. By incorporating leak detection and design optimisation, we help reduce operating costs and minimise leaks before they develop into major issues.

Reach out to us to assess your water pipelines and optimise their design for improved performance and reliability.
